Multiplexer - OrigaMux

Multiplexer - OrigaMux

(Code: AR01832)

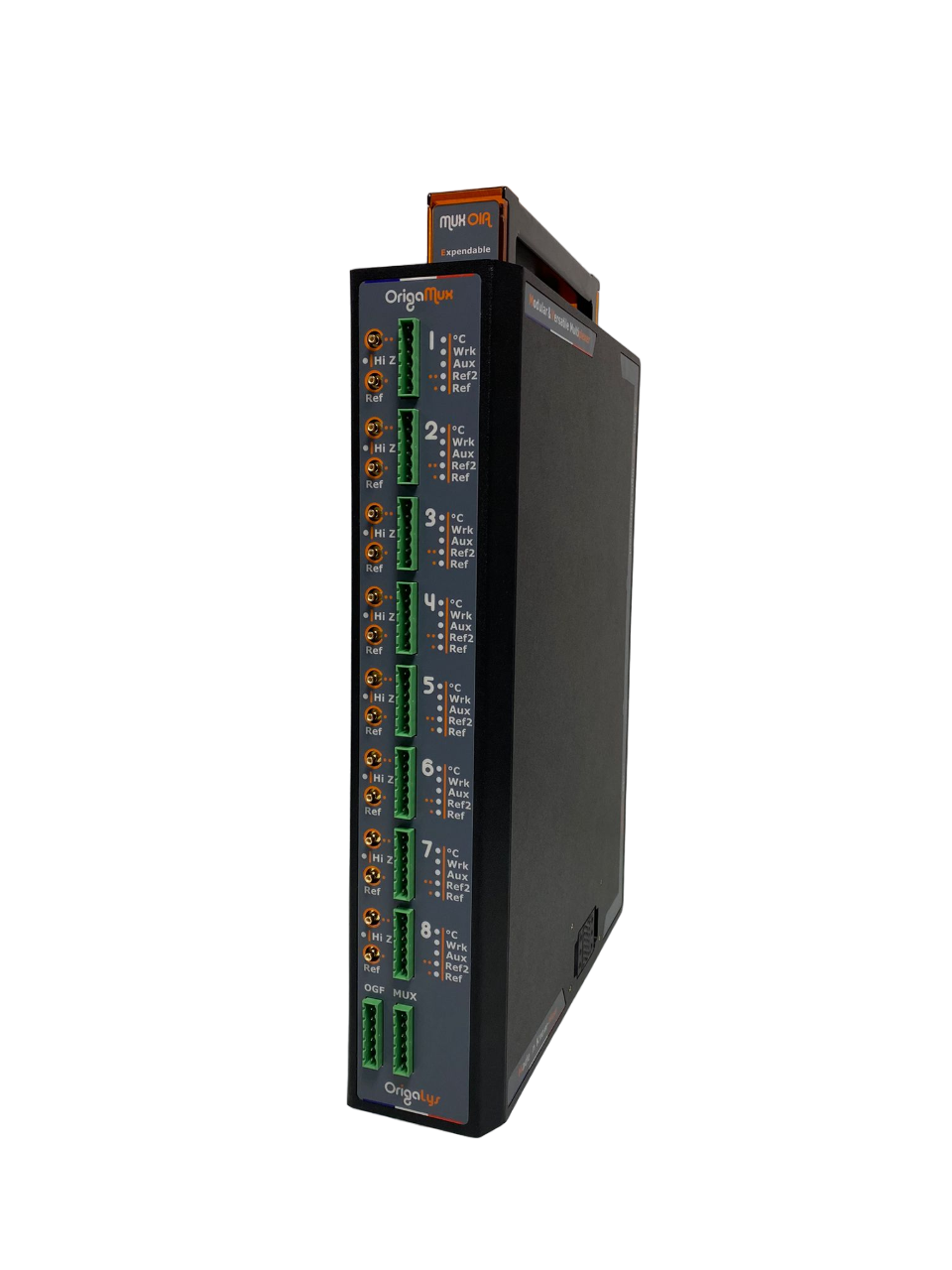

ELECTROCHEMICAL MULTIPLEXER
ORIGAMUX

DESCRIPTION
OrigaMux Concept
Technical specifications
Consult the brochure
EASCVsens Project
MULTIPLY YOUR RESEARCH!
> Get up to 72 cells for one measuring instrument
> Program your methods on a multitude of cells

ZRA MODE :
> Potential maintained at 0 V
> Automatic resumption of ZRA in the event of a power/current failure

APPLICATIONS :
> Corrosion monitoring
> Corrosion inhibitor testing
> Galvanic corrosion
> Surface treatment
> Fuel cell
> Microbial cell
> Electrolyser
ORIGAMUX
ORIGAMUX

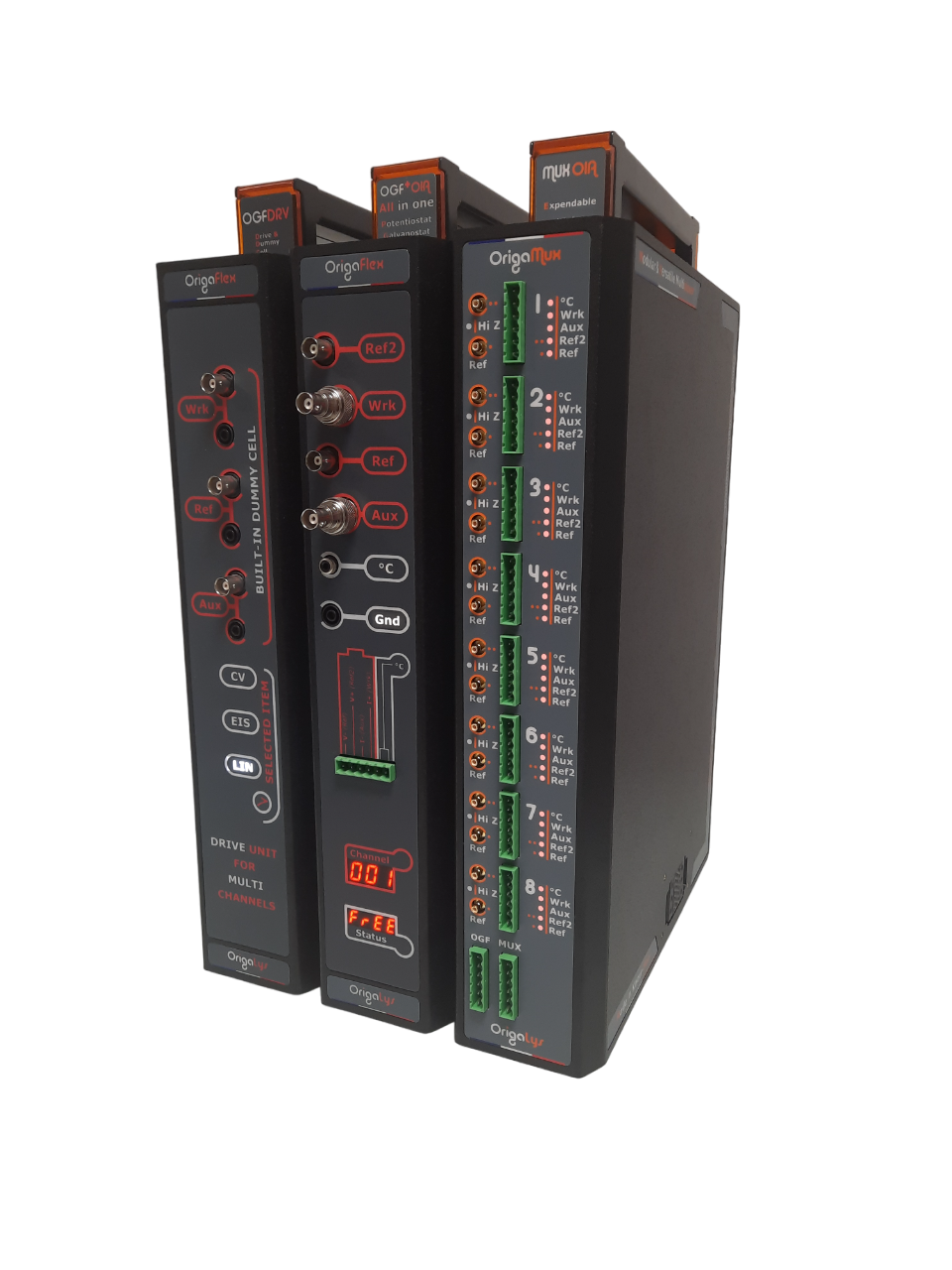

> The OrigaFlex range is a flexible, modular, compact multi-potentiostat system that is unique on the market.

> You can start your system with a single channel, then expand it without limit thanks to its Ethernet connection.

> To operate, your potentiostat must be connected to a power supply (OGFPWR) or a ‘pilot’ channel (OGFDRV), which acts as a ‘chassis’.

> Depending on your configuration, you can control your device with our OrigaMaster 5 software via USB or with our OrigaViewer software via ETHERNET.  Individually, each channel can be controlled via USB using OrigaMaster 5 and simultaneously via ETHERNET using OrigaViewer.
Main specifications
OrigaMux
Number of cells

Switched inputs

Availability

Type of switching

Impedance input

Cascaded

Current range

Potential hold

Safety against power failure in ZRA mode

Communication

Connectors

Software
8 cells per MUX

WRK + (REF | REF2 | AUX | TEMP + GND)

01A / 10A

Relay

10GΩ 20pF

Possibility of cascading 9 OrigaMux, giving up to 72 channels

From pA to 10A per cell depending on the OGF connected

15 V ±100mA in 2/3/4 electrodes

Yes

Controlled by OGFDRV (Ethernet)

1 6-pin connector +2 SMB per cell

OrigaViewer 2
Brochure OrigaMux
Download the brochure

PROJET EASCVSENS

Voltammetry using current sampling on an electrode array to detect trace metals in water.

Partners :
SATIE LOGO
BRGM logo
Projet EASCVsens
Read more
